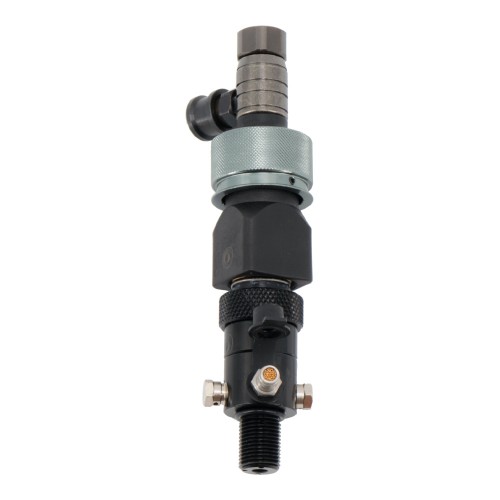

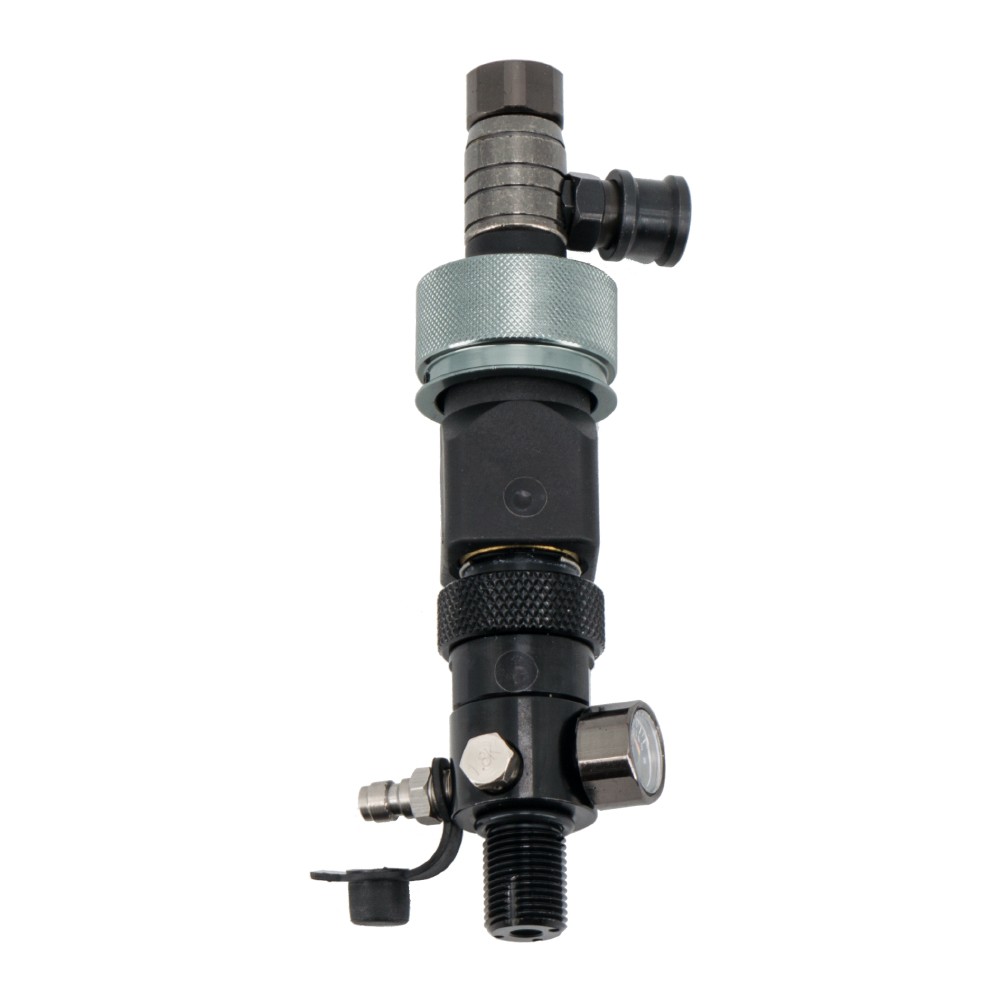

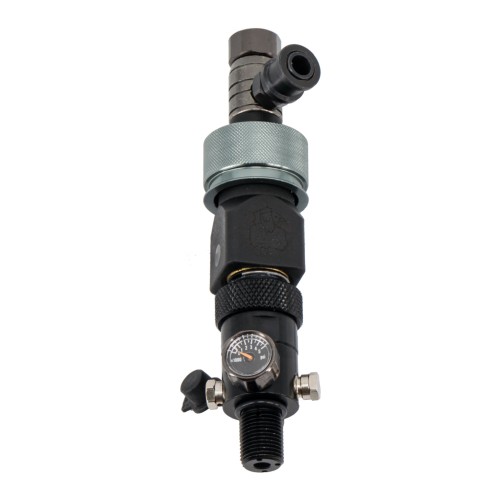

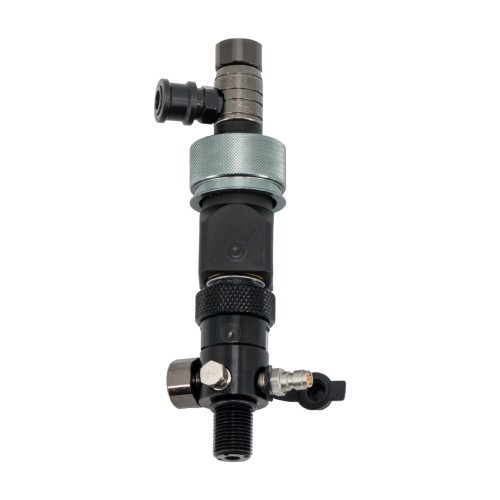

ADJUSTABLE PRESSURE HPA REGULATOR WITH ON/OFF
TWO-STAGE SYSTEM: HIGH-PRESSURE FIRST STAGE AND ADJUSTABLE LOW-PRESSURE SECOND STAGE
FIRST STAGE: REDUCES THE HIGH PRESSURE OF THE TANK (UP TO 4500 PSI / 300 BAR)
SECOND STAGE: OUTPUT PRESSURE ADJUSTABLE FROM 80 TO 150 PSI (±10 PSI TOLERANCE) VIA ADJUSTMENT SCREW WITH LOCK NUT AND BELLEVILLE SPRING STACK
ON/OFF VALVE WITH KNURLED RING AND SINTERED FILTER VENT FOR SAFE LINE DEPRESSURIZATION
IDEAL FOR HPA ENGINES REQUIRING FINE ADJUSTMENT OF THE SUPPLY PRESSURE
CNC ANODIZED ALUMINIUM BODY
0-5000 PSI GAUGE FOR MONITORING THE REMAINING TANK PRESSURE
STANDARD FILL NIPPLE WITH DUST CAP
STEEL MALE QUICK DISCONNECT (FOSTER) ON THE FIRST STAGE
0-300 PSI LOW-PRESSURE GAUGE (×100 SCALE) ON THE SECOND STAGE TO SET AND MONITOR THE REGULATED OUTPUT PRESSURE
90° SWIVEL ELBOW OUTPUT WITH FEMALE QUICK DISCONNECT (FOSTER) FOR THE REGULATED LOW-PRESSURE HPA LINE
4500 PSI CALIBRATED BURST DISC FOR OVERPRESSURE PROTECTION
5/8"-18 UNF THREADED TANK CONNECTION WITH O-RING

SET THE OUTPUT PRESSURE STARTING FROM THE MINIMUM AND INCREASING GRADUALLY, READING THE VALUE ON THE LOW-PRESSURE GAUGE, UP TO THE VALUE REQUIRED BY THE HPA ENGINE
USE ONLY CERTIFIED TANKS WITHIN THEIR VALID TEST DATE
DO NOT ATTEMPT TO MODIFY OR DISASSEMBLE THE REGULATOR WHILE UNDER PRESSURE
