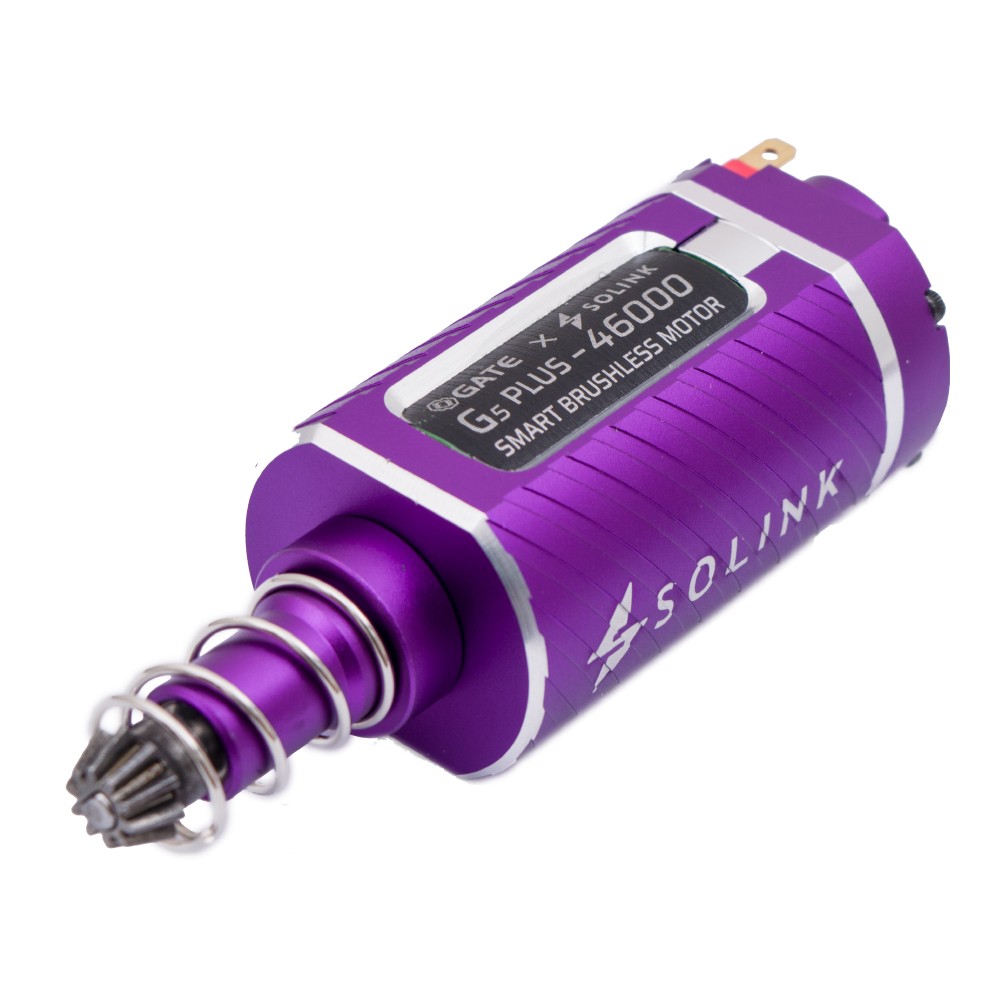

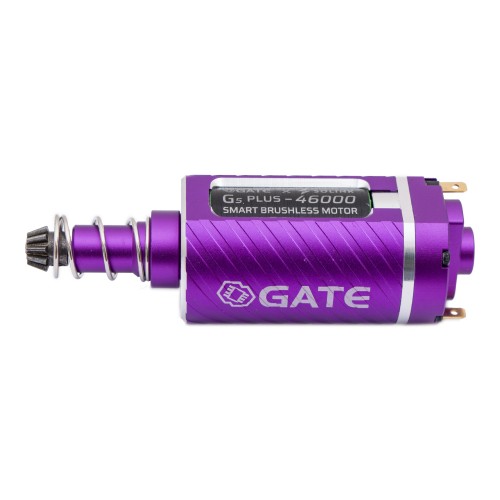

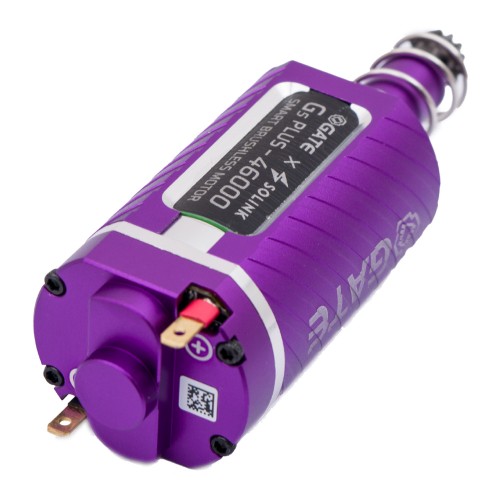

REVOLUTIONARY G5 SMART BRUSHLESS MOTOR
THE WORLD’S FIRST BRUSHLESS MOTOR PROGRAMMABLE VIA GCS MOBILE APP EXCLUSIVELY WITH GATE TITAN II OR ASTER II BLUETOOTH®!
THANKS TO GCS APP YOU GET PRECISE ADJUSTMENT OF SPEED RANGING FROM 10K TO 46K RPM.
TORQUE ADJUSTMENT GIVES YOU THE ABILITY TO ADJUST TORQUE TO YOUR GEARBOX CONFIGURATION.
SOFT START EXTENDS THE LIFE OF THE GEARBOX’S INTERNAL PARTS, INCLUDING THE GEARS
FAST START GIVES YOU THE QUICKEST POSSIBLE TRIGGER REACTION.
SETTINGS CAN BE CHANGED EVEN DURING GAMEPLAY — NO ADDITIONAL PROGRAMMER REQUIRED.
THE MOTOR FEATURES A BUILT-IN ANTI-REVERSAL MECHANISM, IMPROVING GEARBOX PERFORMANCE AND ENSURING SMOOTHER, QUIETER OPERATION WITH MORE CONSISTENT PRE-COCKING.
ITS ULTRA-FAST STARTUP GUARANTEES INSTANT TRIGGER RESPONSE, WHILE HIGH EFFICIENCY REDUCES BATTERY CONSUMPTION AND HEAT BUILDUP.
WITH HIGH TORQUE AND ADJUSTABLE RPM, THE G5 IS COMPATIBLE WITH EVEN THE MOST DEMANDING REPLICA CONFIGURATIONS.

SUPPLY VOLTAGE RANGE 6V - 16.8V
DIMENSIONS (LENGTH X WIDTH X HEIGHT) 88.5mm x 29.5mm x 25 mm
WEIGHT 135g

AT NO LOAD:
SPEED - 45 800 RPM
CURRENT - 3.2A

AT MAXIMUM EFFICIENCY:
EFFICIENCY - 75.9%
SPEED - 40 987 RPM
TORQUE - 500 G/CM
CURRENT - 24.9 A
OUTPUT - 205 WATTS

AT MAXIMUM OUTPUT:
EFFICIENCY - 48.4%
SPEED - 22 950 RPM
TORQUE - 2334 G/CM
CURRENT - 105 A
OUTPUT - 519 WATTS

MAIN FEATURES:

1. THE WORLD'S FIRST BRUSHLESS MOTOR PROGRAMMABLE VIA GCS MOBILE APP EXCLUSIVELY WITH GATE TITAN II OR ASTER II BLUETOOTH®
2. INTEGRATED ANTI-REVERSAL MECHANISM ENSURES QUIETER OPERATION AND ULTRA-PRECISE PRE-COCKING
3. EXTREMELY HIGH TORQUE, REACHING UP TO 2334 G-CM
4. VERY WIDE RPM RANGE: 10 000 - 46 000 RPM
5. HIGHLY DURABLE MOTOR CONNECTORS
6. INTEGRATED MOTOR SHAFT MANUFACTURED USING CNC TECHNOLOGY
7. EXCEPTIONALLY EFFECTIVE BRAKING SYSTEM
8. D-TYPE PINION GEAR
