BATTERY AND CHARGER KIT

LI-PO BATTERY
11.1V x 1100mAh
STICK VERSION
DISCHARGING RATE 25C
DIMENSIONS: 105mm X 20mm X 18mm
DEANS PLUG
MINI G-TECH PLUG FOR SMART CHARGING (REQUIRES CHARGER WITH G-TECH PLUG)

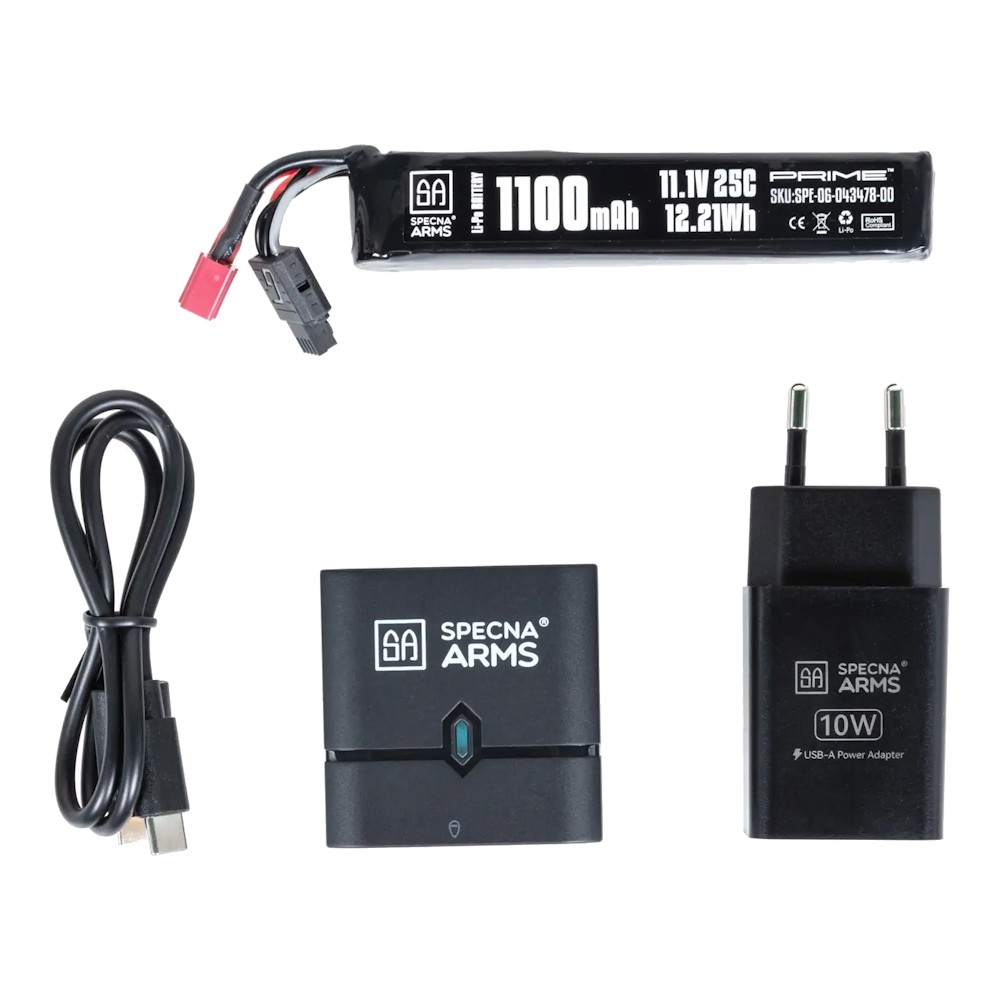

THE FINISHED KIT FROM SPECNA ARMS CONSISTS OF TWO PARTS:

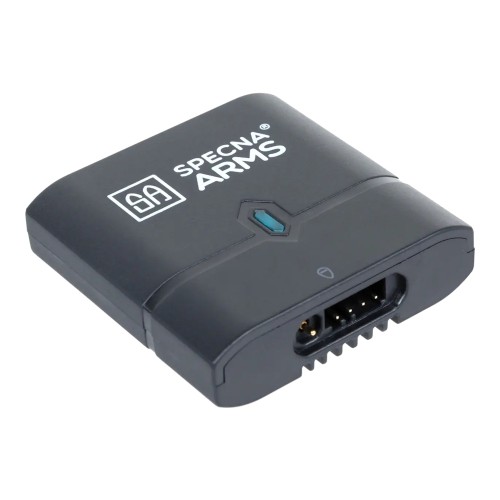

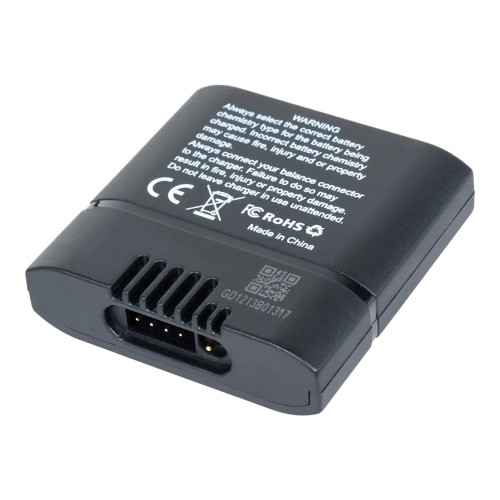

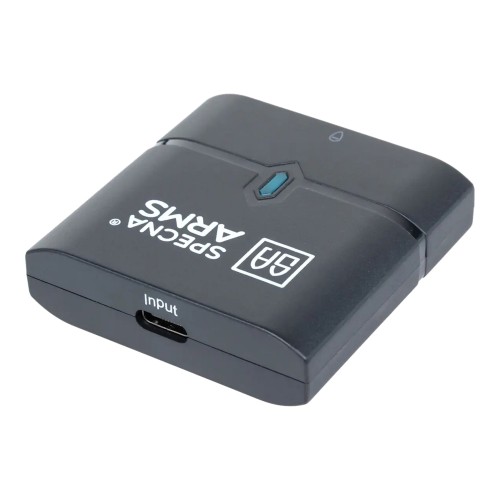

A COMPACT, SLEEK 10W CHARGER POWERED BY A USB-C CABLE (INCLUDED).
SPECNA ARMS EASY NANO CHARGER IS A SMART CHARGER DESIGNED FOR G-TECH PLUG-IN BATTERIES, BUT IS ALSO COMPATIBLE WITH OTHER BATTERIES.
ONCE THE BATTERY IS CONNECTED TO THE CHARGER, THE CHARGER WILL AUTOMATICALLY START THE CHARGING PROCESS.
THE KIT ADDITIONALLY INCLUDES A LI-PO1100 MAH 25C 11.1V T-DEANS G-TECH BATTERY.

CHARGER TECHNICAL SPECIFICATIONS:
- MAX. CHARGING POWER: 10 W
- CHARGING CURRENT: 0.8A
- INPUT VOLTAGE: 5V
- LIPO BATTERY TYPES (2-3S)
- INPUT CONNECTOR: USB-C
- OUTPUT CONNECTOR 2-3S (BALANCER CONNECTOR ONLY)
- OPERATING TEMPERATURE: 0-40*C
- STORAGE TEMPERATURE: -20 ? ~ 60 ?
- DIMENSIONS: 51mm X 51mm X 14mm

PLEASE REMEMBER NOT TO DISCHARGE THE LIPO PACK BELOW 3V PER CELL AND NOT TO OVERCHARGE ABOVE 4.2V PER CELL.
ANOTHER ADVANTAGE OF LIPO PACKS IS THE LOW PERCENTAGE SELF-DISCHARGE.
WHEN NOT IN USE, THE PACK LOSES ABOUT 3-5% OF ITS ENERGY PER MONTH. IT IS NECESSARY TO KEEP AN EYE ON THE PACK, AS DURING VERY LONG STORAGE A DISCHARGE BELOW THE PERMISSIBLE MINIMUM VALUE ( 3V PER CELL ) AND IRREVERSIBLE CHEMICAL REACTIONS MAY OCCUR, WHICH MAY CAUSE DETERIORATION OF THE PACK PROPERTIES INCLUDING ITS PERMANENT DAMAGE, IN EXTREME CASES - IGNITION.
AN UNUSED LIPO PACK SHOULD HAVE AN AVERAGE CHARGE OF APPROXIMATELY 70%.

AFTER USE, DETACH THE BATTERY FROM THE REPLICA.
